Simple Dial Electronic Tap Time



Simple Dial Electronic Tap Time
AL007

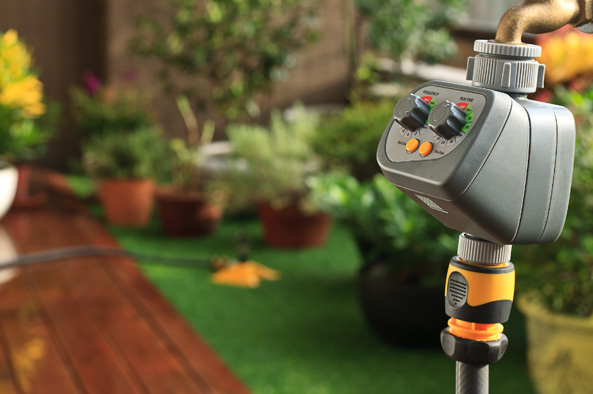

a newly designed tap timer for garden watering, mist cooling and micro dripping

How To Program :
Simply select your watering frequency and run time. The dials can beturned clockwise and anti-clockwise without damaging the mechanism. The indicator light will flash twice to confirm that the program has been accepted.

How to Set the Watering Frequency :
To set the watering frequency, turn the dial to the required frequency. Select every 1, 3, or 5 Minutes for short cycle garden watering, mist cooling, or micro dripping. Or select 1, 2, 6, 12, 24, 48, 72 hours, or every week for normal garden watering.




How to Set the Run Time :
To set your run time, turn the dial to the required watering time --- Select every 5, 10, 30 seconds for short time garden watering, mist cooling, micro dripping system, or to select 1, 10, 20, 30, 45, 50 or 60
minutes for normal garden watering.


Watering will start with 1 more minute added to the first frequency cycle. This 1-minute allowance helps you to think and timely set up the whole program including the Time Delay function before operation. For example, If you set watering for every 5 minutes, each for a 10 seconds duration, at 9 AM, the timer will first come on at 9:06 (1 more minute added to the first frequency cycle), then every 5minutes as a cycle at 9:11, then 9:16, 9:21 etc., every day for 5 minutes each time.

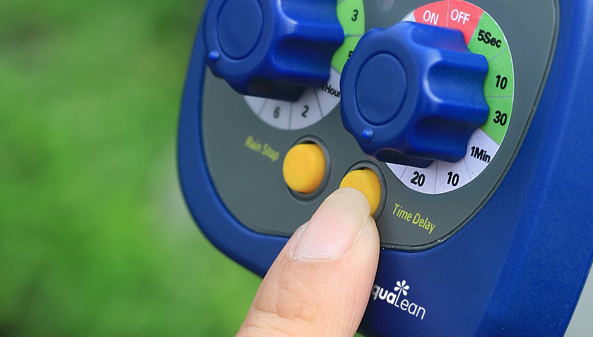

How to Use the Time Delay Function :

You can delay your watering program start time by using the Time Delay Function. Within one minute after you have set the program, depress the Time Delay button for each hour you want to delay the initial start time of watering program being set. You can delay watering program at 1 hourly interval only, up to a maximum of 12 hours. So to delay watering program at 1 hourly interval for 3 hours, depress the Time Delay button 3 times within 1 minute after you have set the program. The indicator light will flash twice to confirm that the whole program (Frequency, Run Time & Time Delay) has been accepted.

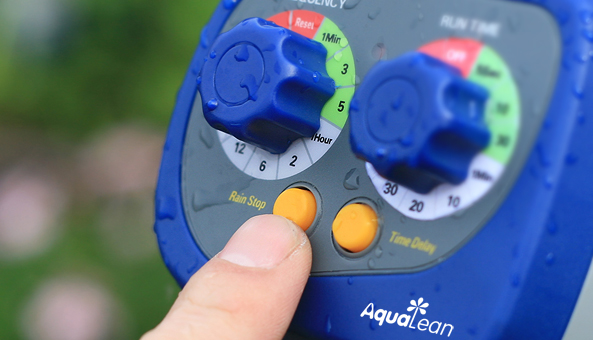

How to Use the Rain Stop Function :
In case of rain, you can stop the whole program any time by using the Rain Stop function. Just depress the Rain Stop button to stop the watering program. (the LED light flash once). Depress the same button again (the LED light flash twice) to re-start the watering cycle as originally set.
