Water Station Kit / AL172


Water Station Kit  AL172
the flexible drip system that connects straight to the garden hose.

Quick and easy to assemble.
Connects straight to garden hose or 13mm poly tube.
Can be used with gravity fed watering systems with adequate pressure.
Ideal for use in garden beds, borders and vegetable patches, or on patios and balconies with pot plants and hanging baskets.


Contents
The Flexi Drip Irrigation System includes all you need to install a drip irrigation system in your garden.

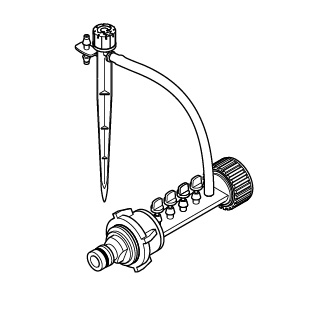

  1 x 5 Outlet Water Station

  5 x Adjustable Flow Spike Drippers

  10m x 4mm Poly Tube





Installation Instructions
The Aqualean Flexi Drip Irrigation System is simple and easy to connect, and will be up and running in 5 easy steps.
You can choose to connect drippers to all 5 watering outlets, or you can reduce the number of drippers for smaller areas
.


1.Select desired location for Water Station, measure required lengths of 4mm poly tube and cut to size


2.Connect 4mm poly tube to barb on each spike dripper


3.Remove plugs from Water Station and securely connect 4mm poly tube to barbed outlets



4.Connect hose or poly tube (with snap on connector) to Water Station



5.If you are not using all 5 outlets ensure the plug is inserted into any unused outlet


Tip : Soak the end of the poly tube in hot water for a minute before connecting to the drippers and watering outlets. This will expand the poly and make it easier to connect.

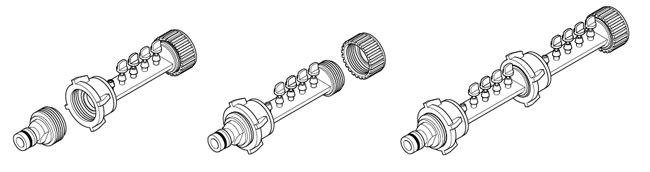

For larger areas you can increase the number of watering outlets by connecting two or more 5 Outlet Water Stations together:

1.Remove sprinkler adaptor from one Water Station
2.Remove end cap from other Water Station
3.Screw both Water Stations togethe
