Handy Hose Reel / CHC2113

Handy Hose Reel  CHC2113
Compact design for ease of storage and space

Assembly :

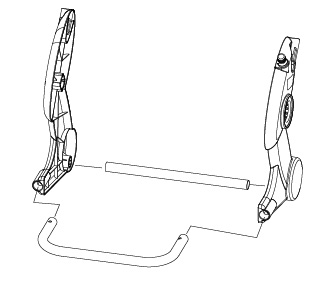

( 1 ) Insert base support ( first ) and then base U frame into bottom of the side frames.



( 2 ) Firmly press the two drum supports into recesses of drum flanges.



( 3 ) Connect hose connector to angled hose adaptor.



( 4 ) Place assembled drum between side frames.

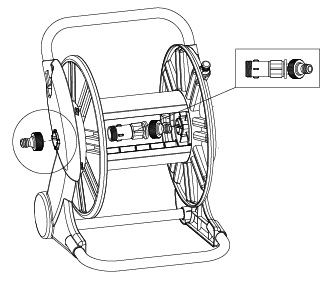

( 5 ) Insert angled hose adaptor inside drum; attach remaining connector to outside of angled adaptor, on the side frame.

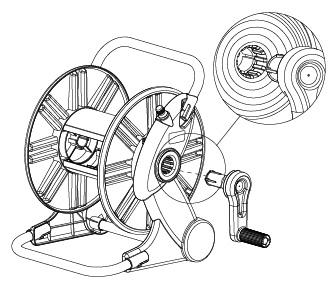

( 6 ) Attach handle U frame into top of side frames, insert crank handle into crank handle drum on the side frame.
