Premium Hose Reel / CHC2101

Premium Hose Reel  CHC2101
free standing and wall mountable

Assembly :

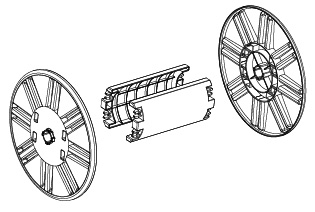

( 1 )  Firmly press the 2 reel support bars into the recess on the reel flanges.

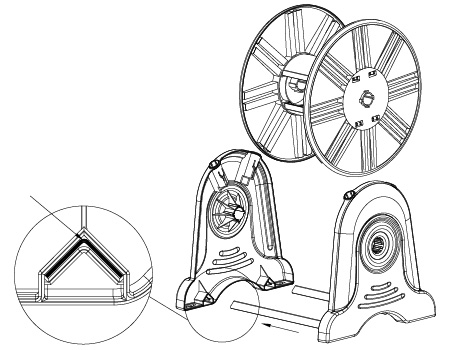

( 2 ) Insert firmly the metal cross bars into left and right side frames.Place the assembled reel flanges between the assembled reel frames.

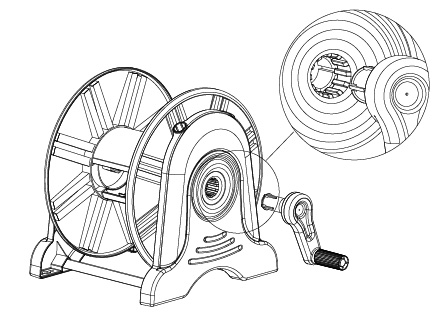

( 3 ) Insert the crank handle into the right side reel frame.

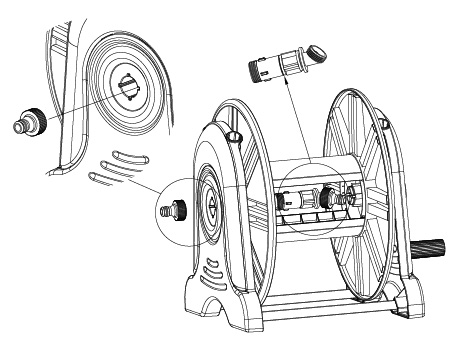

(4 ) Connect hose connector to angled hose adaptor.  Insert angled hose adaptor inside the left drum and attach remaining hose connector to the outside of the angled hose adaptor.

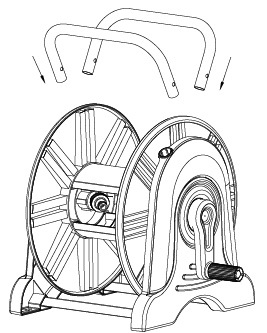

( 5 ) Attach the handle U frames to the top of the reel.



( 6 ) The Premium Hose Reel can be wall mounted or free standing.





To mount the Premium Hose Reel :

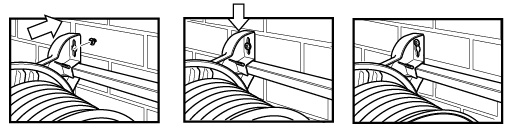

( 1 ) Mrk the location of the 4 screws, using the reel as a guide. Drill the 4 holes and insert the screws ( If attaching to a brick wall use wall plugs - not includes )
( 2 ) Lift the reel on to the 4 screws.
( 3 ) Lower reel allowing screws to lock into position.
